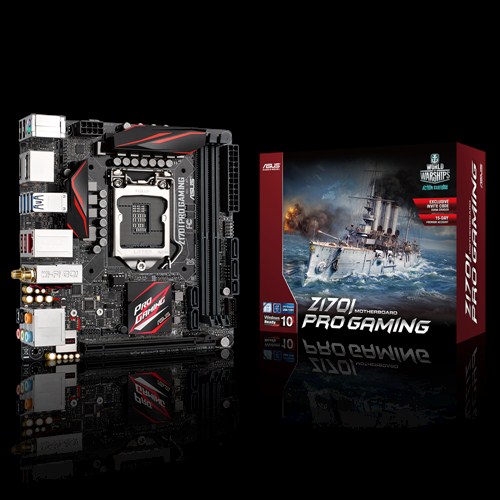

ASUS Z170I PRO GAMING BIOS Z170I-PRO-GAMING-ASUS-0401 Miniaturized size, maximized gaming fun LGA1151 socket for 6th-gen Intel® Core™ i7 / Core i5 / Core i3, Pentium® and Celeron Processors Dual DDR4 4000 (OC) support SupremeFX: Flawless audio that makes you part of the game Sonic Radar ll: Scan and detect your enemies to dominate Intel Gigabit Ethernet, LANGuard and GameFirst technologies: Top-speed protected networking 5-Way Optimization and Pro Clock technology: Easy and stable overclocking RAMCache: Speed up your game loads Gamer's Guardian: Highly-durable components and smart DIY features 2x2 Wi-Fi with MU-MIMO, USB 3.1 Type-A and M.2: Ultra-speedy transfers for faster gaming CPU Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. Chipset Intel® Z170 Memory 2 x DIMM, Max. 32GB, DDR4 3400(O.C.)/3333(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Graphic Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Expansion Slots 1 x PCIe 3.0/2.0 x16 Storage Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports 1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*1 2 x SATA 6Gb/s port(s) Supports Intel® Smart Response Technology*2 LAN Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology Anti-surge LANGuard Wireless Data Network Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Support ASUS Wi-Fi Go! Utility Bluetooth Bluetooth V4.1 Audio SupremeFX 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 115 dB SNR stereo playback output Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar II USB Ports ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (Type-A) Intel® Z170 chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z170 chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, black, 2 at mid-board) Special Features ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 2+, and Turbo App Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM ASUS TPU : - Auto Tuning - TurboV - GPU Boost ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger+ - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector Media Streamer RAMCache Operating System Support Windows® 10 , 64bit Windows® 8.1 , 64bit Windows® 7 , 32bit/64bit Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 (red)Type-A 4 x USB 3.0 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 2 x Wi-Fi antenna port(s) Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 2 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector Accessories User's manual ASUS Q-Shield M.2 2242 mounting kit 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x 12 in 1 Cable Label (s) BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE Support Disc Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) Note *1:For a 2242 storage device, use the bundled 2242 mounting kit. *2:These functions will work depending on the CPU installed.
